Deploy Keycloak using a PostgreSQL Database with Persistent Storage on OpenShift and the Red Hat Keycloak Operator

Prerequisites

Ensure you have the following:

1. An active OpenShift cluster.
2. The oc command-line tool is installed and configured to communicate with your cluster.
3. The kubectl command-line tool is installed and configured to communicate with your cluster.
4. OpenSSL is installed for generating the SSL certificate.

Step 1: Create a PostgreSQL Persistent Database

Use the OpenShift CLI (oc) to create a new PostgreSQL application with persistent storage.

oc new-app postgresql-persistent -p DATABASE_SERVICE_NAME=pgshost -p VOLUME_CAPACITY=2Gi -p POSTGRESQL_USER=preprodpg -p POSTGRESQL_PASSWORD=passw0rd -p POSTGRESQL_DATABASE=keycloak -p POSTGRESQL_VERSION=15-el9

This command will create a PostgreSQL application named postgresql-persistent, setting up the database with the specified parameters.

Step 2: Generate SSL Certificate

Generate a self-signed SSL certificate:

openssl req -subj '/CN=kloakmanager.apps./O=Test Keycloak./C=US' -newkey rsa:2048 -nodes -keyout key.pem -x509 -days 365 -out certificate.pem

This command creates two files: key.pem (private key) and certificate.pem (public certificate), both valid for 365 days.

Step 3: Create TLS Secret

Create a Kubernetes secret from the certificate and key files:

kubectl create secret tls tls-secret --cert certificate.pem --key key.pem

This command creates a TLS secret named tls-secret that can be used by other resources in your cluster.

Step 4: Create Keycloak Database Secret

Create another secret containing the database username and password:

kubectl create secret generic keycloak-db-secret \
  --from-literal=username=preprodpg \
  --from-literal=password=passw0rd

This secret, named keycloak-db-secret, will be used to store the credentials needed to connect to the Keycloak database.

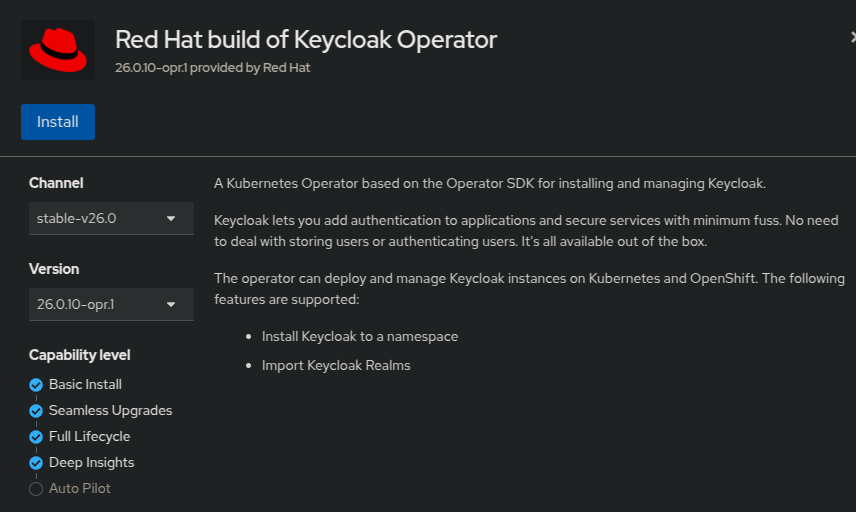

Step 5: Install Red Hat build of Keycloak Operator

The operator can also be installed from CLI. In this case it will be installed on the “kloak” namespace

Step 6: Apply Keycloak YAML File

Apply the YAML configuration to deploy Keycloak:

apiVersion: k8s.keycloak.org/v2alpha1
kind: Keycloak
metadata:
  name: instance
spec:
  instances: 1
  db:
    vendor: postgres
    host: pgshost
    usernameSecret:
      name: keycloak-db-secret
      key: username
    passwordSecret:
      name: keycloak-db-secret
      key: password
  http:
    tlsSecret: tls-secret
  hostname:
    hostname: kloakmanager.apps.
  proxy:
    headers: xforwarded # double check your reverse proxy sets and overwrites the X-Forwarded-* headers

This command deploys Keycloak based on the configurations in kloak.yaml.

Step 7: Clean Up (Optional)

If needed, clean up all resources related to the PostgreSQL persistent database:

oc delete all,pvc,secrets -l app.kubernetes.io/component=postgresql-persistent

The above command deletes all resources labeled with app.kubernetes.io/component=postgresql-persistent, including Deployments, PersistentVolumeClaims, and Secrets.

Please adjust the commands according to your specific context and requirements. Always ensure you understand what each command does before running it in your environment.
